Moodle

This configuration information is intended for Moodle LMS Administrators.

Please use the following configuration information to create the BryteWave LTI 1.3 Tool in your
Moodle environment.

1. Select Site administration in the top left of your Moodle environment, then select Plugins along
the top navigation bar, followed by Manage tools.

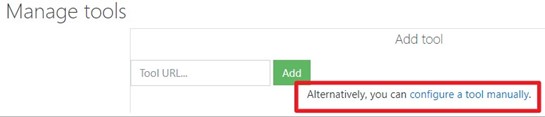

2. Select configure a tool manually, then enter the following information:

     • Tool name: BryteWave Digital Materials
     • Tool URL: https://redshelf.com/lti1p3/section
     • Tool description: BryteWave LTI 1.3
     • LTI version: LTI 1.3
     • Public key type: Keyset Url
     • Public key: https://redshelf.com/lti1p3/jwks
     • Initiate login URL: https://redshelf.com/lti1p3/oidclogin
     • Redirection URI(s):
          ○ https://redshelf.com/lti1p3/shelf
          ○ https://redshelf.com/lti1p3/section
          ○ https://redshelf.com/lti1p3/dl
          ○ https://redshelf.com/lti1p3/resource/ebook
          ○ https://redshelf.com/lti1p3/resource/courseware
     • Custom parameters: [leave this field blank]
     • Tool configuration usage: Show in activity chooser and as a preconfigured tool
     • Default launch container: New window
     • Content-Item Message: [do not check this box]
     • Content Selection URL: Leave blank
     • Services:

           o IMS LTI Assignment and Grade Services: Do not use this service.
           o IMS LTI Names and Role Provisioning: Do not use this service.
           o Tool Settings: Use this service.

     • Privacy:
         o Share launcher’s name with tool: Always
         o Share launcher’s email with tool: Always
         o Accept grades from the tool: Never
         o Force SSL: [check this box]

3. Select Save changes. A BryteWave LTI 1.3 Tool is now created in your Moodle environment.

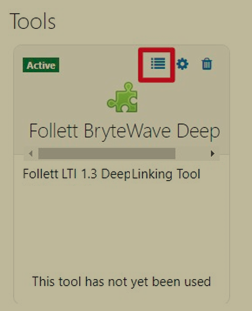

4. Select the View configuration details icon on the BryteWave Tool, then record the Client ID and Deployment ID fields. You will provide the Client ID and Deployment ID to RedShelf to complete enablement of your BryteWave LTI 1.3 Tool.

5. Provide the Client ID and Deployment ID to your RedShelf account representative as directed.
They will enable your BryteWave LTI 1.3 Tool Link.

NOTE: If you are enabling any of the additional RedShelf integrations (Automated Roster Transfer),
please wait to provide your Client ID and Deployment ID until after you enable those integrations,
as there is additional information required by RedShelf.

Once LTI 1.3 is enabled by your RedShelf account representative…

6. Login to Moodle as an Instructor, navigate to a course, and place the BryteWave LTI 1.3 Tool link.

7. Select the gear icon in the top right, then select Turn editing on.

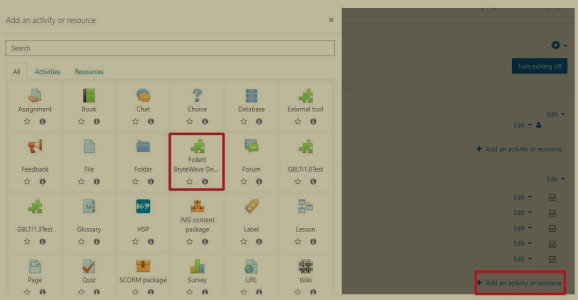

8. Select Add an activity or resource, followed by BryteWave Digital Materials.

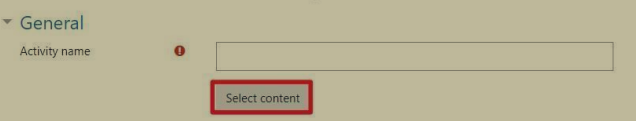

9. Choose Select Content.

10. Select “My Shelf”, then rename the link to “BryteWave Course Materials”.

11. Select Create Link. This brings you back to your Moodle window to finish configuration of your
LTI 1.3 Tool.

NOTE: Your screen may have the red message in the screenshot below. This is expected behavior,
and does not mean your LTI Tool is misconfigured. Please proceed with these steps.

12. Select Save and return to course.

13. Click the BryteWave Course Materials link to ensure your LTI 1.3 Tool has been configured
correctly.

NOTE: Your screen may have the red message in the screenshot below. This is expected behavior,
and does not mean your LTI Tool is misconfigured.
